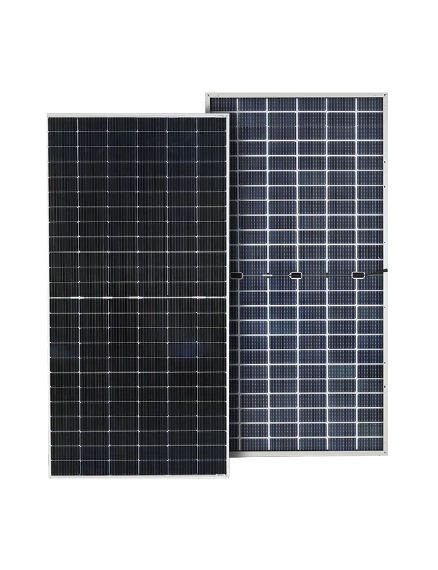

The 630W Bifacial TOPCon monocrystalline solar panel is a modern energy solution that offers high efficiency and durability. Manufactured with N-type TOPCon technology, it is suitable for both monofacial and bifacial applications. With dual-sided energy generation, it ensures greater efficiency and is designed to meet various energy needs.
Design & Materials
This panel is coated with high-transmittance anti-reflective glass, maximizing sunlight absorption. The anodized aluminum frame enhances durability, while the IP68-rated junction box provides waterproof protection.
Durability & Performance
- Maximum Power (Pmax): 630 Wp
- Module Efficiency: 22.48%
- Maximum Power Voltage (Vmp): 43.88V
- Maximum Power Current (Imp): 14.33A
- Open Circuit Voltage (Voc): 52.22V
- Short Circuit Current (Isc): 15.05A
- Power Tolerance: 0~+5W
- Maximum System Voltage: 1500V DC
- Operating Temperature Range: -40 ~ +85°C
- Safety Class: Class I
- Maximum Series Fuse Current: 30A
Physical Specifications
- Cell Technology: Bifacial TOPCon Monocrystalline
- Cell Size: 182 x 91 mm
- Number of Cells: 144 (6 x 24)
- Weight: 34.5 kg
- Panel Dimensions: 2276 x 1132 x 30 mm
- Wind Load Resistance: 2400 Pa
- Snow Load Resistance: 5400 Pa
- Junction Box Protection Rating: IP68
- Junction Box Cable Length: 300-1600 mm
Advantages of Bifacial Technology
- Rear-Side Energy Gain: Provides an extra 5% – 25% energy output.
- Higher Efficiency: Produces more energy compared to traditional panels.
- Low-Light Performance: Performs better in cloudy conditions and partial shading.
Applications
The 630W Bifacial TOPCon Monocrystalline Solar Panel is ideal for both grid-connected and off-grid energy systems. It is widely used in homes, farms, warehouses, industrial facilities, and solar power plants.
