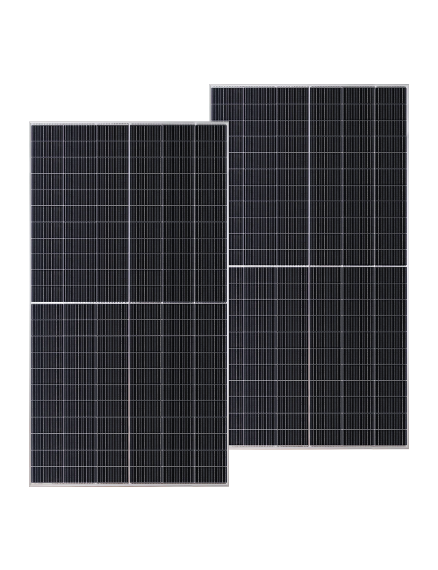

675W Bifacial Perc
The 675W Bifacial TOPCon monocrystalline solar panel is an advanced energy solution offering high efficiency and durability. With N-type TOPCon cell technology, it ensures low losses and high performance. Thanks to its bifacial energy generation, it provides greater efficiency, making it ideal for large-scale projects and commercial systems.
Design and Materials
This panel is coated with high-transparency anti-reflective glass, maximizing sunlight absorption. The anodized aluminum frame enhances durability, while the IP68-rated junction box ensures waterproof protection.
Durability and Performance
- Maximum Power (Pmax): 675 Wp
- Module Efficiency: 21.71%
- Maximum Power Voltage (Vmp): 38.48V
- Maximum Power Current (Imp): 17.52A
- Open Circuit Voltage (Voc): 46.15V
- Short Circuit Current (Isc): 18.54A
- Power Tolerance: 0~+5W
- Maximum System Voltage: 1500V DC
- Operating Temperature Range: -40 ~ +85°C
- Safety Class: Class I
- Maximum Series Fuse Rating: 30A
Physical Characteristics
- Cell Technology: Bifacial TOPCon Monocrystalline
- Cell Size: 210 x 105 mm
- Number of Cells: 132 (6 x 22)
- Weight: 34.5 kg
- Panel Dimensions: 2382 x 1301 x 34 mm
- Wind Load Resistance: 2400 Pa
- Snow Load Resistance: 5400 Pa
- Junction Box Protection Rating: IP68
- Junction Box Cable Length: 350-1600 mm
Advantages of Bifacial Technology
The 675W Bifacial TOPCon solar panel increases production by utilizing extra light reflected from the rear surface. This results in a higher overall energy yield.
- Additional Power Generation: Can vary between 5% – 25%
- High Performance: Provides stable output even under shading, low light conditions, and temperature variations
- Durable Structure: Designed for long-term use in industrial and large-scale projects
Application Areas
This panel is ideal for commercial buildings, large-scale solar farms, industrial facilities, agricultural applications, and renewable energy projects. It can be used in both grid-tied and off-grid systems.
